Windows® Device Manager Conflicts - Rhyme™ by HTC

Start Device Manager.

  • Windows 8
    • Right-Click Start Screen > All Apps > Control Panel > System and Security > Device Manager.
  • Windows 7
    • Click Start > Control Panel > System and Security > Device Manager.
  • Windows Vista
    • Click Start > (Settings) Control Panel > (System and Maintenance) > Device Manager.
      Note If prompted, click Continue.
  • Windows 2000 / XP
    • Click Start > (Settings) Control Panel > (Performance and Maintenance) > System > Hardware > Device Manager.

For detailed instructions, refer to Opening Windows Device Manager.

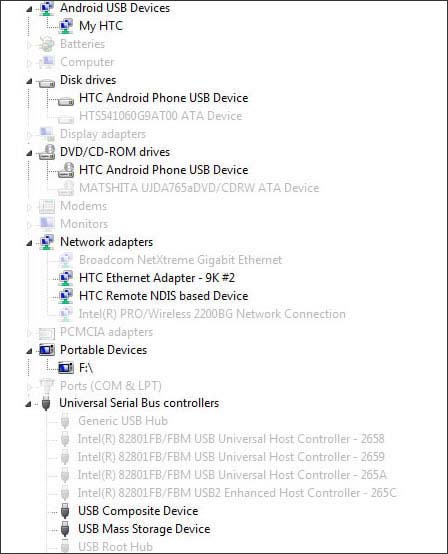

The following devices are normally installed:
Note Depending upon the selected USB connection (e.g. Charge Only, HTC Sync, Disk Drive, Media Sync, etc.), some of the devices may not appear.
Android USB Devices
My HTC
Disk drives
HTC Android Phone USB Device
DVD/CD-ROM drives
HTC Android Phone USB Device
Network adapters
HTC Ethernet Adapter - xK
HTC Remote NDIS based Device
Portable Devices
F:/ (Where F represents the assigned drive letter) or ADR6330.
Universal Serial Bus controllers
USB Composite Device
USB Mass Storage Device
Drivers
Note If a red X, yellow ! or yellow ? is displayed to the left of a listed device, a conflict is present and the drivers must be updated or reinstalled.
Note Driver conflicts may also be indicated by a device entry labeled Other Devices or Unknown.
Windows Device Manager displaying devices with errors

If a conflict is present:

  1. Right-click the device then click Update Driver Software.
    Note If using Windows 2000 / XP, right-click the device then click Update Driver.
    Note The device name may differ from the example shown.
    Update driver
  2. Click Browse my computer for driver software.
    Note If using Windows 2000 / XP, select Install from a list or specific location (Advanced) then click Next.
    Driver update software
  3. Enter C:\Windows\System32\driver into the search window then click Next.
    Note If using Windows 2000 / XP, ensure that Search for the best driver in these locations and Include this location in the search are selected.
    Note The driver location can be entered manually or navigated to by clicking Browse.
    Note If the driver software is not found, a Windows Operating System update may be needed.
    Browse for driver software
  4. Click Close.
    Note If using Windows 2000 / XP, click Finish.
    Driver update complete
