Insert SD (Memory) Card - Samsung Galaxy S® 5

Note This device supports microSD (TransFlash) memory cards. A microSD card can be purchased from any Verizon Wireless retail store or at the online store.

Caution Always ensure the back cover and multipurpose jack cover are closed tightly to prevent water and dust from entering the device.

  1. Ensure the device is powered off.
  2. From the back of the device, locate the notch in the cover (located on the upper left edge) then lift the back cover from the device.
    Removing the battery cover
  3. From the notch in the lower right corner of the battery, lift the battery out.
  4. With the gold contacts facing down, insert the microSD card. Gently push the card into place.

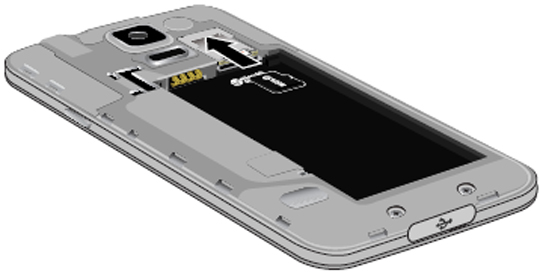

    Insert memory card
  5. Align the battery contacts then gently press the battery into place.
  6. Align the back cover then gently press it into place.

Related Topic: Remove the Memory Card
