Manage Geo-Fences - Delphi Connect - Apple® iPhone® Device Portal

  1. Access the Delphi Connect Device Portal.

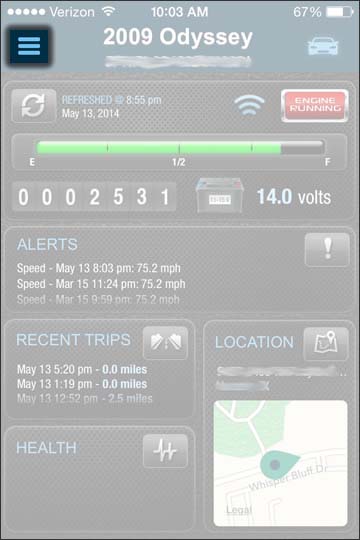

  2. Tap the Menu icon (upper left-hand corner).
    Tap the menu
    Geo-Fence Creation/Editing
    Geo-Fence Alert Notifications



Geo-Fence Creation/Editing

  1. Tap Location.
    Tap Location
  2. If more than one vehicle is available, select a vehicle.
    Select a vehicle
  3. Tap the Information icon (upper right-hand corner).
    Tap the Information icon

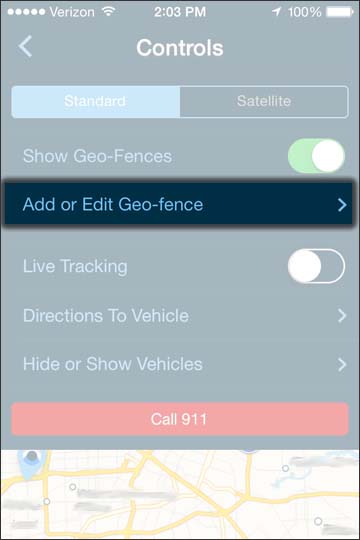

  4. Tap Add or Edit Geo-fence.

    Create a Geo-Fence
    Edit a Geo-Fence
    Enable a Geo-Fence
    Delete a Geo-Fence



Create a Geo-Fence

Tap Create New Geo-Fence.

Drop Pin
Search Address



Drop Pin

  1. Drag and zoom the center point of the geo-fence to a location.
    Note The geo-fence shape can be set to either a circle or square.
  2. Tap Resize.
  3. Adjust the size of the geo-fence then tap Finish Resize (in the lower-right).
  4. Tap Save (in the upper-right).
  5. Enter a name for the geo-fence then tap Save.
  6. Set up a Geo-Fence alert notification.



Create Geo-Fence
Top



Search Address

  1. Tap the Search field then enter in an address.
  2. Tap Search (lower-right corner).
  3. Drag and zoom the center point of the geo-fence to the location, if needed.
    Note The geo-fence shape can be set to either a circle or square shape.
  4. Tap Resize.
  5. Adjust the size of the geo-fence then tap Finish Resize (in the lower-right).
  6. Tap Save (in the upper-right).
  7. Enter a name for the geo-fence then tap Save.
  8. Set up a Geo-Fence alert Notification.



Create Geo-Fence
Top



Edit a Geo-Fence

  1. Tap a geo-fence.
  2. If needed, adjust the location and size of the geo-fence.
  3. Tap Save.
  4. If needed, update the name of the geo-fence then tap Save.



Create/Edit Geo-Fence
Top

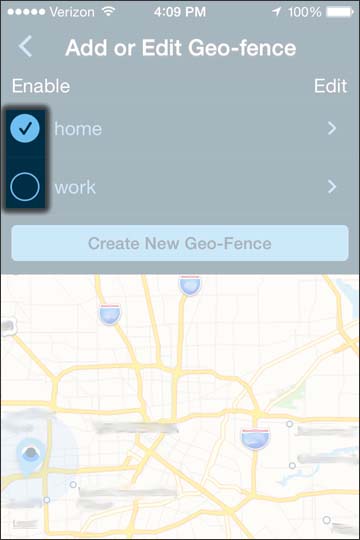

Enable a Geo-Fence

Tap the Enable circle next to the geo-fence.
Note Enabled when a check mark is present.



Create/Edit Geo-Fence
Top



Delete a Geo-Fence

  1. Tap a geo-fence.
  2. Tap Delete.
  3. Tap Yes.



Create/Edit Geo-Fence
Top



Geo-Fence Alert Notifications

  1. Tap Settings.
    Tap Settings
  2. Tap Vehicle Settings.
  3. Tap a vehicle.
  4. Tap Alerts & Notifications.
  5. Tap Geo-Fence.
  6. Enable all desired geo-fences.
    Note A geo-fence is enabled when ON is displayed.
  7. Tap a geo-fence.

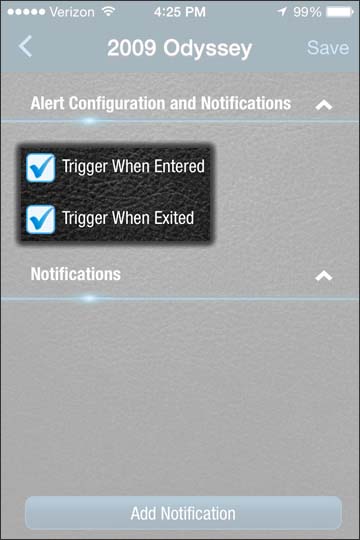

  8. Tap an alert option.
    • Trigger When Entered
    • Trigger When Exited

    Add Notification
    Delete Notification



Add Notification

  1. Tap Add Notification.
  2. Select an option.
    • Email
    • Text message
  3. Add email address or 10-digit mobile number then tap Done.
  4. Tap Save.



Geo-Fence Alerts
Top



Delete Notification

  1. Tap the X next to the notification to be deleted.
  2. Tap Save.



Geo-Fence Alerts
Top
