Insert SIM Card - Samsung Galaxy Note® Edge

Instructions on inserting/removing your SIM can help with activation issues/errors, browser connection problems and a blank/frozen screen.

Caution Don't attempt to insert the SIM card while the device is powered on. Doing so may harm the SIM card and/or the device.

  1. Ensure that the device is powered off.
  2. With the display facing away, locate the notch in the cover located in the upper left edge then gently pull the battery cover off.
  3. Locate the notch in the lower right corner of the battery then gently pull the battery out.
  4. With the gold contacts facing down, insert the card notched end first into the Micro SIM card slot.

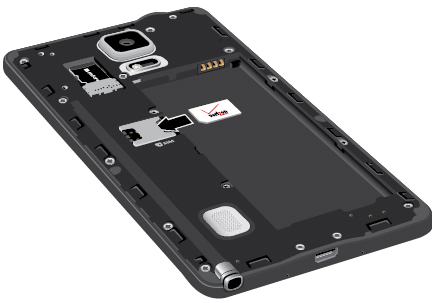

    Inserting the SIM card
  5. Replace the battery.
    Note Ensure that the connectors on the battery align with the connectors on the device.
  6. Replace the battery cover.



Related Topic: Remove the SIM Card
