Insert Battery - Samsung Galaxy S® 5

Caution Always ensure the back cover and multipurpose jack cover are closed tightly to prevent water and dust from entering the device.

  1. Remove the battery cover.
    Note With the display facing away, locate the notch in the cover (on the upper-left edge) then pull the cover off.
    Removing the battery cover
  2. Align the battery contacts with the contacts in the device then press the battery into position.

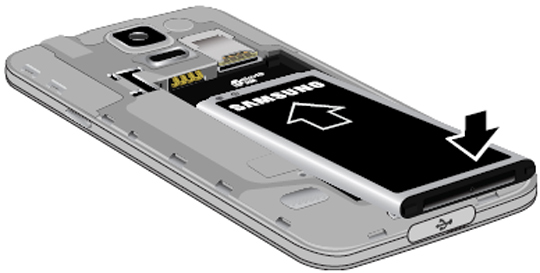

    Inserting the battery
  3. Align the cover and press it into place.


Related Topic: Remove the Battery
