View Advanced Settings - 4G LTE Network Extender

Adjust Transmit Power setting manually only if directed.

Note Notes:

  • 4G LTE Network Extender transmit power is automatically adjusted based on macro network signal strength.
  • The PC must have Internet Explorer 9 & above to access the web interface.


  1. Access the Network Extender Admin then click Settings Settings icon (on the left).
    Note For assistance, refer to Access Network Extender Admin.
  2. Click Advanced to view the following:
    • Network Extender Information
      • Network ID - CELL ID
        Note The Cell ID value is repeated at the end of the #48 coverage confirmation announcement.
      • Physical CELL ID
    • Transmit Power
      Note For additional assistance, refer to Configure Transmit Power.
    • Neighboring Cells Detected

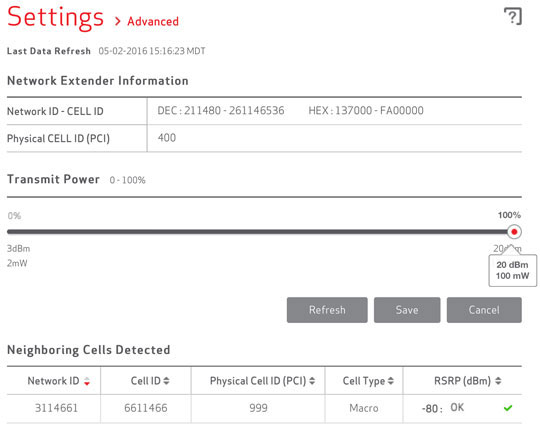

    Settings Advanced page
