One Talkā„  Desk Phone - Factory Reset

Select the desk phone model to perform factory reset:

T41
T46G
T49G
T41S / SW and T42S
T46S / SW
CP860
One Talk DECT IP Cordless Phone - W56HV
CP920



T41 Factory Reset

  1. Press the Menu soft key.
    Press menu
  2. Select Settings.
    Settings
  3. Select Advanced.
    Advacned
  4. Enter the password.
    Note The default password is "admin".
    Enter Password
  5. Select Reset to factory settings.
    Factory reset
  6. Select Full Reset.
    Select full reset
  7. Select OK.
    select OK
  8. Desk phone begins initialization process.
    Note The process may take up to 15 minutes.
    Initialization process
  9. After successful activation the 911 notification screen displays. Press OK.
    Emergency address



Top



T46G Factory Reset

  1. Select Menu.
    Menu
  2. Select Advanced.
    Advanced
  3. Enter the password.
    Note The default password is "admin".
    Enter password
  4. Select Reset & Reboot.
    Reset & Reboot

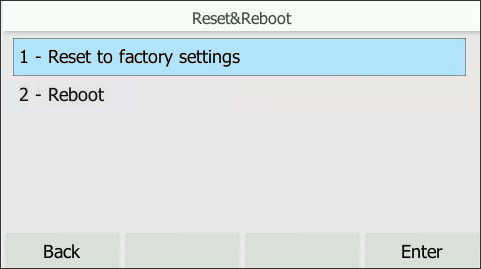

  5. Select Reset to factory settings.
    Factory settings
  6. Select Full Reset.
    Full reset
  7. Select OK.
    Select OK
  8. Desk phone begins initialization process.
    Note The process may take up to 15 minutes.
    Initialization process
  9. After successful activation the 911 notification screen displays. Press OK.
    Emergency address



Top



T49G Factory Reset

  1. Select Menu.
    Menu
  2. Select Advanced.
    Advanced
  3. Enter the password.
    Note The default password is "admin".
    Enter password

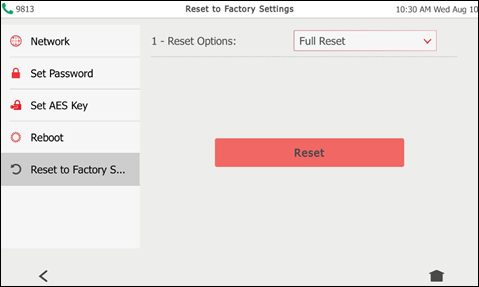

  4. Select Reset to factory settings.
    Reset to factory settings
  5. Select Full Reset.
    Full Reset

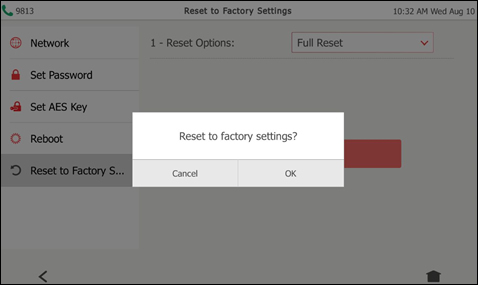

  6. Select OK.
    Select OK
  7. Desk phone begins initialization process.
    Note The process may take up to 15 minutes.
    Initialization process
  8. After successful activation the 911 notification screen displays. Press OK.
    Emergency address



Top



T41S / SW and T42S Factory Reset

  1. Press the Menu soft key.
  2. Select Settings.
  3. Select Advanced.
    Select Advanced
  4. Enter the password.
    Note The default password is "admin".
    Enter password

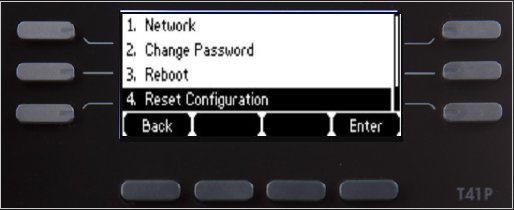

  5. Select Reset Configuration.
    Reset Configuration

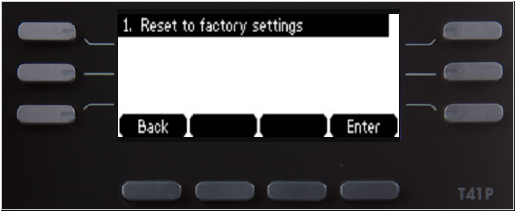

  6. Select Reset to factory settings.
    Reset to factory settings
  7. Select OK.
    Press OK to reset
  8. The Desk phone begins the initialization process.
    Note The process may take up to 15 minutes.
    Note The phone displays "Initializing, please wait during this process."

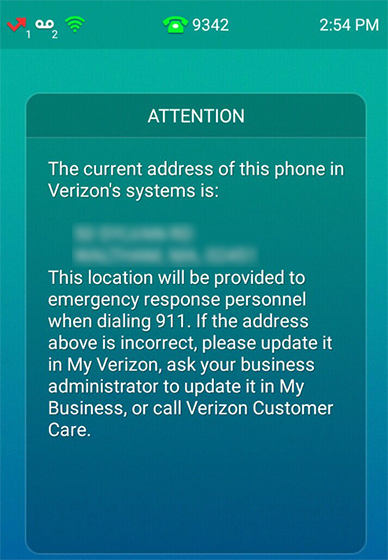

  9. After a successful activation, the 911 notification screen displays. Press OK.
    911 address screen
    Note To view your 911 address, press the Address line key to the right of the LCD screen.



Top



T46S / SW Factory Reset

  1. Press the Menu soft key.
  2. Select Settings.
  3. Select Advanced.
    Select Advanced
  4. Enter the password.
    Note The default password is "admin".
    Enter password
  5. Select Reset Configuration.
    Reset Configuration
  6. Select Reset to factory settings.
    Reset to factory settings
  7. Select OK.
    Press OK to reset
  8. The Desk phone begins the initialization process.
    Note The process may take up to 15 minutes.
    Note The phone displays "Initializing, please wait during this process."
  9. After a successful activation, the 911 notification screen displays. Press OK.
    911 address screen
    Note To view your 911 address, press the Address line key to the right of the LCD screen.



Top



CP860 Factory Reset

  1. Press the Menu soft key.
    Press menu
  2. Select Settings.
    Settings
  3. Select Advanced.
    Advanced
  4. Enter the password.
    Note The default password is "admin".
    Enter Password
  5. Select Reset to factory settings.
    Factory reset
  6. Select Full Reset.
    Select full reset
  7. Select OK.
    select OK
  8. Desk phone begins initialization process.
    Note The process may take up to 15 minutes.
    Initialization process
  9. After successful activation the 911 notification screen displays. Press OK.
    Emergency address





Top



One Talk DECT IP Cordless Phone - W56HV

  1. From the main screen, press the Navigational button (located in the middle) on the W56HV Handset then select Settings.
    Note Utilize the 5-way navigation pad to highlight and the center button to select.
    Select settings
  2. Select System Settings.
    System settings
  3. Select Base Reset.
    base Reset
  4. Select Full Reset.
    Full reset
  5. Enter the 4 digit PIN using the device keypad (default is 0000) then select Done (Right soft key).
    Enter the PIN
  6. Select Yes to confirm.
    Select Yes
  7. From the phone displays reboot screen select Exit and wait for Reboot to complete.
    Select Exit



Top



CP920 Factory Reset

  1. Press the Menu soft key.
    Press Menu
  2. Select Settings.
    Select Settings
  3. Select Advanced.
    Select Advanced
  4. Enter the password.
    Note The default password is "admin".
    Enter password
  5. Select Reset to factory settings.
    Select Reset to factory settings
  6. Select OK.
    Select OK
  7. Desk phone begins initialization process.
    Note The process may take up to 15 minutes.
    Initialization screen

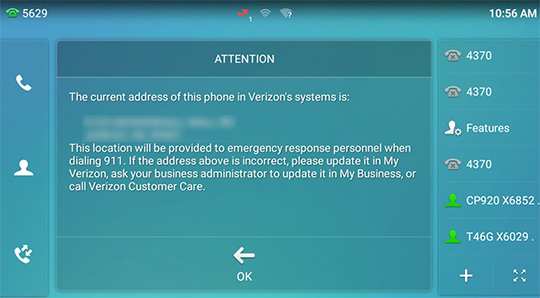

  8. After successful activation the 911 notification screen displays. Press OK.



Top
