Advanced Settings - Ellipsis® Jetpack® - MHS900L

To change the Advanced Settings (e.g., LAN, Port Filtering, etc.) on your Jetpack, view this info.

Caution Changing advanced settings may be harmful to the stability, performance and security of the Jetpack. Contact your local IT administrator prior to altering any of these settings.

  1. Access the Admin Web Interface.
  2. From the left menu, click Jetpack Settings.
  3. Click Advanced.
    Note If a warning message appears when clicking the 'Advanced' tab, read it then click Continue.
    Advanced
  4. Click any of the following:



Manual DNS

Caution You may automatically assign Domain Name Server (DNS) settings by the device. If enabling manual DNS is necessary, contact your local IT administrator for assistance.

  1. To enable, click ON for 'Enable manual DNS'.
    Manual DNS
  2. From the 'DNS 1 IP address' and 'DNS 2 IP address' fields, enter the appropriate info.
  3. Click Save Changes.



Top



SIM

Refer to Enable/Disable/Modify the SIM PIN.



Top



Firewall

  1. From the 'VPN Pass through Mode' section, click ON or OFF.
    Firewall
  2. Click Save Changes.



Top

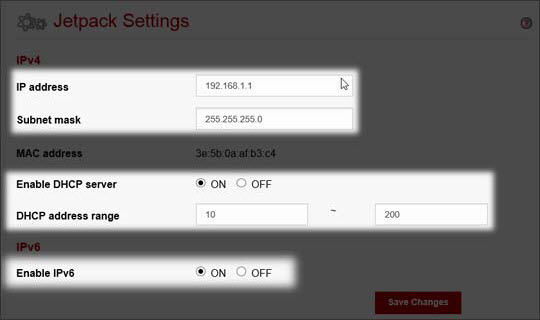

LAN

  1. Enter the desired info into the following fields:
    • IP address
    • Subnet mask
    • Enable DHCP server (select ON or OFF to enable or disable).
    • DHCP address range
    • Enable IPv6 (select ON or OFF to enable or disable).
      LAN
  2. Click Save Changes.



Top



Port Filtering

  1. From the 'DMZ' field, select ON or OFF to enable or disable.
    Note When on, enter your desired IP addresses in the 'DMZ IP address' field.
    Port Filtering
  2. From the 'Port Filtering' field, select ON or OFF to enable or disable.
    Note Click the check mark next to the apps that you wish to allow.
    Note If the app is not listed, click Add Custom Application (lower-left) then enter the appropriate info.
    Note If disabling Port Filtering, skip to step 3.
  3. Click Save Changes.



Top
