SmartHub with Voice - Insert Battery

Note Notes:

  • When inserting the battery, ensure the device isn't connected to any device or power source.
  • The battery recharges as soon as the SmartHub is connected to a power outlet. The position of the power switch has no impact.

  1. From the bottom the SmartHub, press the Door release button down until the door pops up then lift the door.
    SmartHub door release button

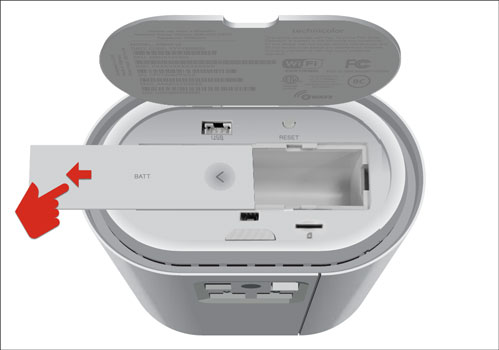

  2. Remove the battery cover.
    SmartHub battery door removal

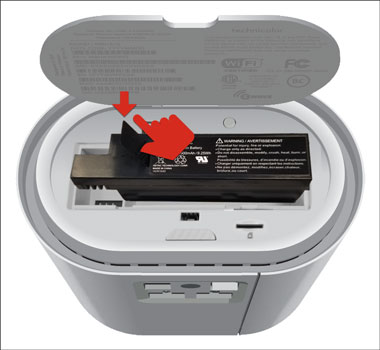

  3. Insert the battery as shown.
    SmartHub battery insertion

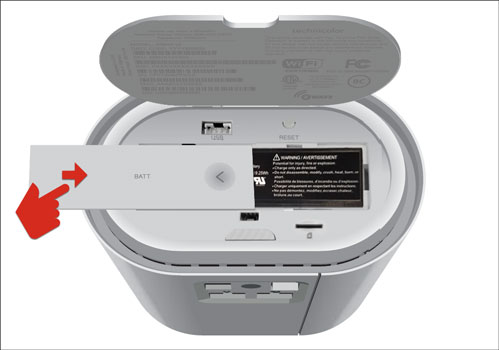

  4. Replace the battery cover then close the door
    Note Press the door closed until it clicks into place.
    SmartHub battery door replacement

Note For additional info on charging your SmartHub with Voice, check out this interactive demo.
