4G LTE Network Extender for Enterprise 2 - Install the GPS Extension Cable

The 4G LTE Network Extender for Enterprise is an advanced business solution that's not available for consumer use.

Note Notes:

  • For best results, place the Network Extender in an elevated location near a window then position the GPS antenna horizontally (GPS letters facing up).
  • Refer to the Quick Start Guide for wall mount instructions.

  1. Ensure the Network Extender is powered off and unplugged from the power outlet.
  2. From the connection side of the Network Extender, attach the GPS antenna cable (indoor use only) to the GPS port (mini-coax).
    Warning Don't force the cable into the mini-coax connector as doing so may damage it.

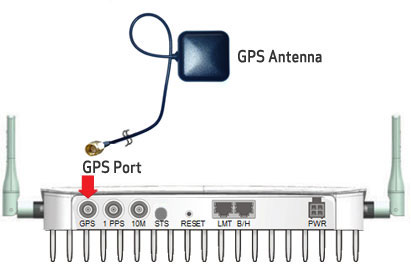

    GPS antenna mini-coax connecting to the GPS Port
