Managing SNPP Connections - Enterprise Messaging (EMAG)

  1. Sign in to Enterprise Messaging.
  2. From the left navigation menu hover over 'APIs' then click Connections.
    Note To view the navigation menu, click the red tab dotted tab.
    API connections
  3. Click the SNPP tab.
    Create a connection
    Modify a connection
    Delete a connection
    SNPP Telnet Settings



Create a connection

  1. Click Add new.
    Click add new
  2. Enter the appropriate info (e.g., Fixed code, Userid, Password, etc.) then click Add.
    Note Authentication for SNPP connections in EMAG is done based on the incoming IP, userid and password

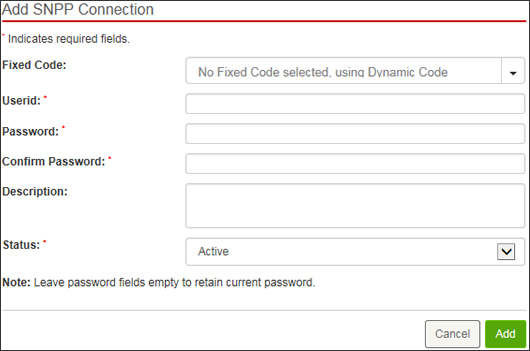

    . Enter SNPP info



Top



Modify a connection

  1. From the SNPP connections screen, click the desired SNPP connection Userid (located on the left side).
    Click UserID
  2. Modify the settings (e.g., Fixed code, Userid, Password, Return URL, etc) as desired then click Update.

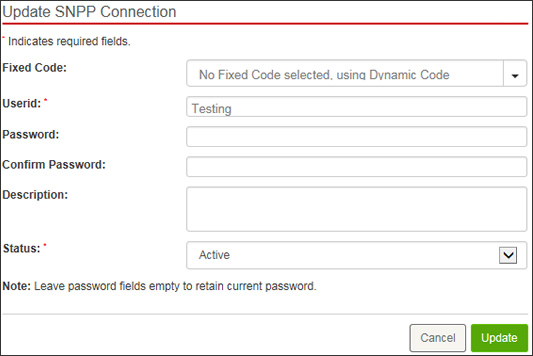

    Update SNPP connection info



Top



Delete a connection

From the SNPP connections screen, locate the connection then click Remove icon Delete (far-right).
Note If presented, click Remove.



Top



SNPP Telnet Settings

Note Telnet is a text-based program to connect to another computer using the Internet. Telnet allows a user to access programs and services remotely.

  1. Connect to EMAG via telnet using “snpp.emag.vzw.com 444”.
  2. Use one of the following syntax to log in to EMAG via Telnet:
    • Login [username] [password] OR LOGIN [username] [password]
