Samsung Galaxy Core Prime™ - Insert the Battery

Caution Always ensure the back cover and multipurpose jack cover are closed tightly to prevent water and dust from entering the device.



  1. With the display facing away, locate the notch in the cover located on the upper left edge then gently pull the cover off.
    Removing the battery cover
    Removing the battery cover 2

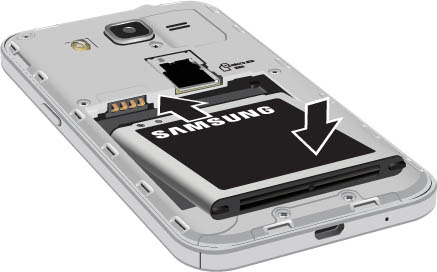

  2. Align the battery contacts with the contacts in the device then press the battery into position.
    Inserting Battery
  3. Align the cover and gently press it into place.



Related Topic: Remove the Battery
