One Talkā„  Desk Phone - Soft Reset

Note Notes:

  • To make a selection, press the appropriate corresponding soft key.
  • For desk phone models T41 and T46, you can perform a soft reset by pressing and holding the X button (directly below the 4-way navigation pad) for 5 seconds then pressing OK at the reboot phone screen prompt.



Select the desk phone model to perform soft reset:

T41
T41S/SW and T42S
T46G
T46S/SW
T49G
CP860
One Talk DECT IP Cordless Phone - W56HV
CP920



T41 Soft Reset

  1. Press the Menu soft key.
    Press menu
  2. Select Settings.
    Settings
  3. Select Advanced.
    Advacned
  4. Enter the password.
    Note The default password is "admin".
    .Enter Password
  5. Select Reboot.
    Select Reboot
  6. Select OK.
    Select OK
  7. The desk phone begins the initialization process.
    Note The process may take up to 15 minutes.
    Initialization process
  8. After a successful activation, the 911 notification screen is displayed. Press OK.
    Emergency address



Top



T41S/SW and T42S Soft Reset

  1. From the Home screen, press the Menu soft key.
  2. Using the navigation arrow keys, select Settings then press OK.

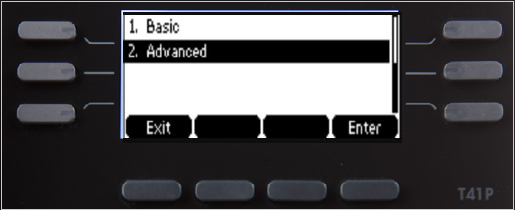

  3. Select Advanced then press OK.
    Settings menu

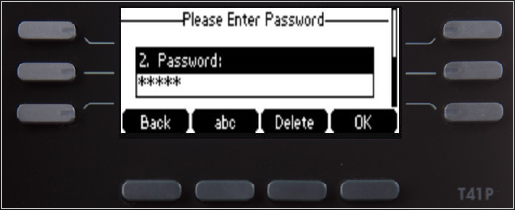

  4. Enter the password then press the OK soft key.
    Enter password

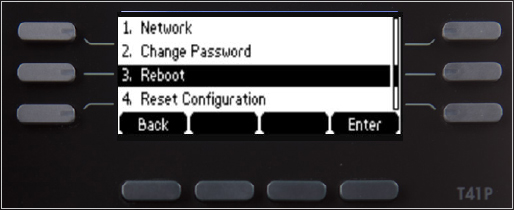

  5. Select Reboot.
    Select Reboot

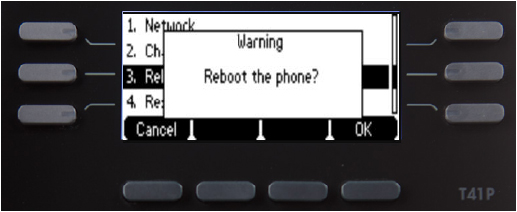

  6. Press OK to reboot the phone.
    Press OK
  7. The Desk phone begins the initialization process.
    Note The process may take up to 15 minutes.
    Note The phone displays "Initializing, please wait during this process."
  8. After a successful activation, the 911 notification screen displays. Press OK.
    Note To view your 911 address, press the Address key to the right of the LCD screen.
    911 address screen



Top



T46G Soft Reset

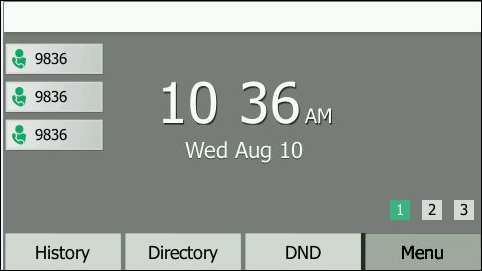

  1. From the Home screen, select Menu.
    Menu
  2. Select Advanced.
    Advanced

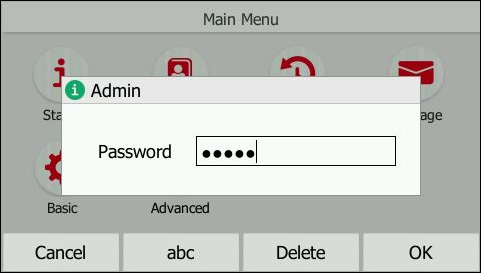

  3. Enter the password.
    Note The default password is "admin".
    Enter password

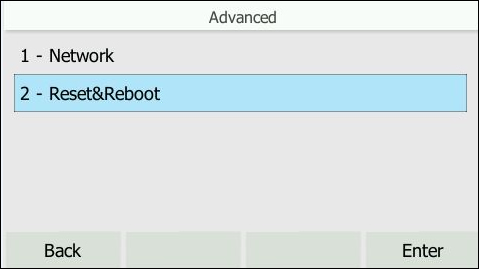

  4. Select Reset & Reboot.
    Reset & Reboot

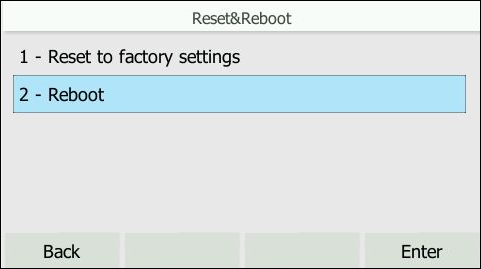

  5. Select Reboot.
    Factory settings
  6. Select OK.
    Select OK
  7. The desk phone begins the initialization process.
    Note The process may take up to 15 minutes.
    Initialization process
  8. After a successful activation, the 911 notification screen is displayed. Press OK.
    Emergency address



Top



T46S/SW Soft Reset

  1. From the Home screen, press the Menu soft key.
  2. Select Advanced then press OK.
    Settings menu
  3. Enter the password then press the OK soft key.
    Enter password then press OK

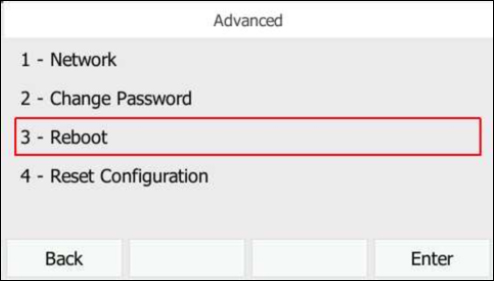

  4. Select Reboot.
    Select Reboot
  5. Press OK to reboot the phone.
    Press OK
  6. The Desk phone begins the initialization process.
    Note The process may take up to 15 minutes.
    Note The phone displays "Initializing, please wait during this process."
  7. After a successful activation, the 911 notification screen displays. Press OK.
    Note To view your 911 address, press the Address key to the right of the LCD screen.
    911 address screen



Top



T49G Soft Reset

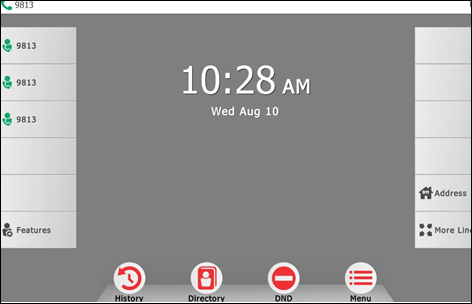

  1. From the Home screen, select Menu.
    Menu

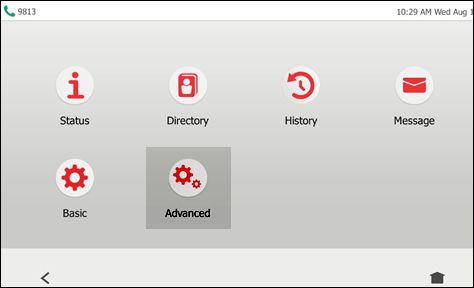

  2. Select Advanced.
    Advanced

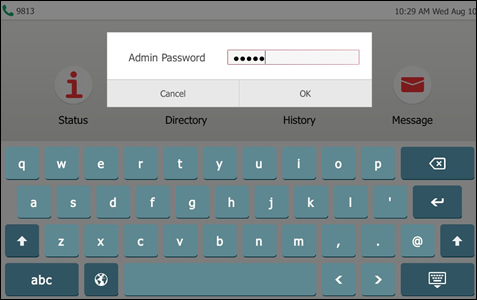

  3. Enter the password.
    Note The default password is "admin".
    Enter password

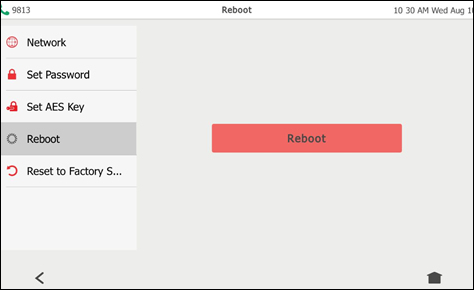

  4. Select Reboot.
    Select Reboot

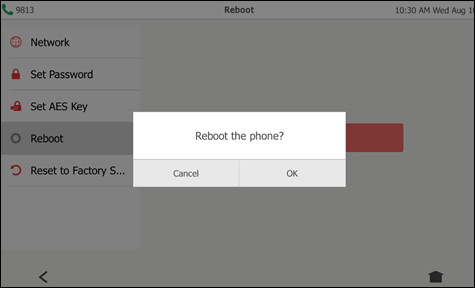

  5. Select OK.
    Select OK
  6. The desk phone begins the initialization process.
    Note The process may take up to 15 minutes.
    Initialization process
  7. After a successful activation, the 911 notification screen is displayed. Press OK.
    Emergency address



Top



CP860 Soft Reset

  1. From the Home screen, press the Menu soft key.
    Press menu
  2. Select Settings.
    Settings
  3. Select Advanced.
    Advacned
  4. Enter the password.
    Note The default password is "admin".
    Enter Password
  5. Select Reboot.
    Select Reboot
  6. Select OK.
    Select Ok
  7. The desk phone begins the initialization process.
    Note The process may take up to 15 minutes.
    Initialization process
  8. After a successful activation, the 911 notification screen is displayed. Press OK.
    Emergency address



Top



One Talk DECT IP Cordless Phone - W56HV

  1. From the main screen, press the Navigational button (located in the middle) on the W56HV Handset then select Settings.
    Note Utilize the 5-way navigation pad to highlight and the center button to select.
    Select settings
  2. Select System Settings.
    System settings
  3. Select Base Restart.
    Select base reset
  4. Enter the 4 digit PIN using the device keypad (default is 0000) then select Done (Right soft key).
    Enter the PIN code
  5. From the Phone displays reboot screen select Exit and wait for Reboot to complete.
    Select Exit



Top



CP920

  1. From the Home screen, press the Menu soft key.
    Home screen
  2. Select Settings.
    Settings menu
  3. Select Advanced.
    Advanced settings
  4. Enter the password.
    Note The default password is "admin".
    Enter password
  5. Select Reboot.
    Select Reboot
  6. Select OK.
    Select OK
  7. The desk phone begins the initialization process.
    Note The process may take up to 15 minutes.
    Initializing
  8. After a successful activation, the 911 notification screen is displayed. Press OK.
    911 address



Top
