One Talkā„  Desk Phone - Park / Retrieve Call

Note Notes:

  • Calls can only be parked to One Talk phone numbers or extensions in your group.
  • You cannot use programmed Speed Dials on the desk phone to enter an extension or phone number when attempting to park a call.
  • Notification is cancelled if user makes outbound call, receives an incoming call or 45 seconds passes and the call rings back to where it was parked from originally.
  • Line 2 is used when parking a call.



T41S/SW and T42S
T46G
T46S/SW
T49
CP920



T41S/SW and T42S

  1. While on an active call, press the Park soft key.
    Note User hears a message stating "Please dial the number where you want to park your call followed by # or dial # to park the call against your number."

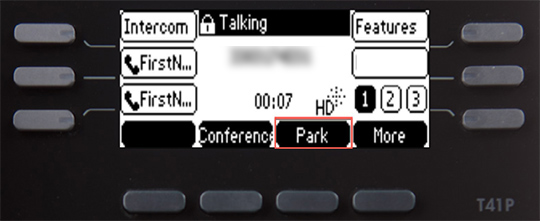

    Press Park soft key
  2. Enter the appropriate 10-digit number or the extension number followed by #.
    Note Press # to park against your own extension.
  3. To retrieve a parked call, press the Retrieve soft key.
    Note User receives audio and visual notification of the parked call.
    Note Call can be retrieved by dialing FAC **88 + extension.

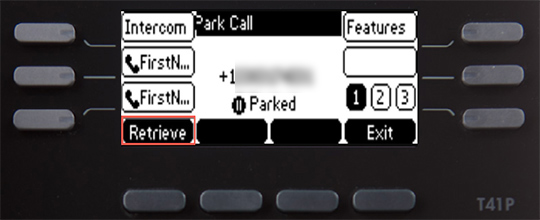

    Press Retrieve soft key



Top



T46G

  1. While on an active call, press the Park soft key.
    Note User hears a message stating "Please dial the number where you want to park your call followed by # or dial # to park the call against your number."

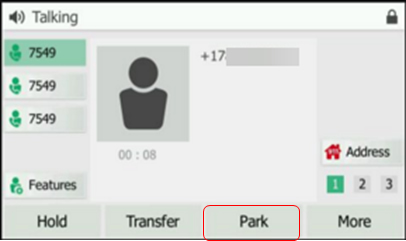

    T46 Park a call
  2. Enter the appropriate 10-digit number or the extension number followed by #.
    Note Press # to park against your own extension.
  3. To retrieve a parked call, press the Retrieve soft key.
    Note User receives audio and visual notification of the parked call.
    Note Call can be retrieved by dialing FAC **88 + extension.

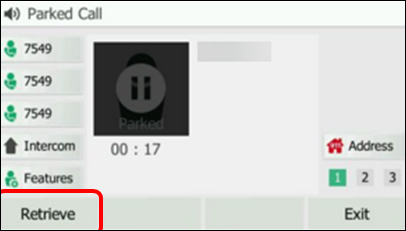

    T46 Retrieve call



Top



T46S/SW

  1. While on an active call, press the Park soft key.
    Note User hears a message stating "Please dial the number where you want to park your call followed by # or dial # to park the call against your number."

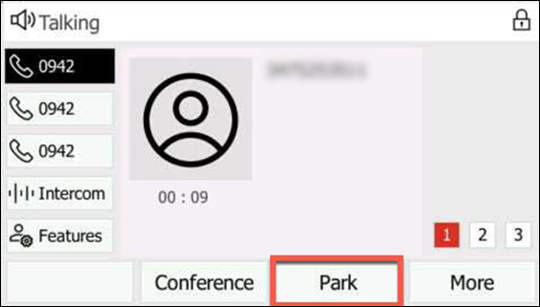

    Press Park soft key
  2. Enter the appropriate 10-digit number or the extension number followed by #.
    Note Press # to park against your own extension.
  3. To retrieve a parked call, press the Retrieve soft key.
    Note User receives audio and visual notification of the parked call.
    Note Call can be retrieved by dialing FAC **88 + extension.

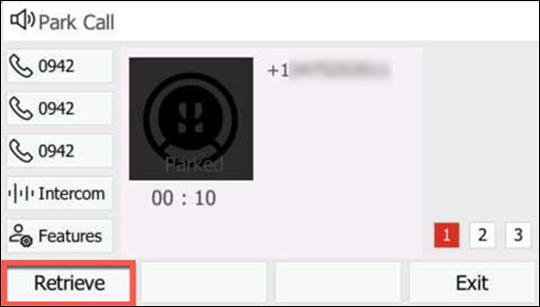

    Press Retrieve soft key



Top



T49

  1. While on an active call, press the Park soft key.
    Note User hears a message stating "Please dial the number where you want to park your call followed by # or dial # to park the call against your number.'
    T49 park call
  2. Enter the appropriate 10-digit number or the extension number followed by #.
    Note Press # to park against your own extension.
  3. To retrieve a parked call, press the Retrieve soft key.
    Note Desk phone LCD screen displays notification that a call is parked and emits an audio beep every 15 seconds until call is retrieved.
    Note Call can be retrieved by dialing FAC **88 + extension.

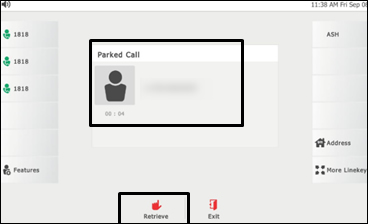

    T49 retrieve call



Top



CP920

  1. While on an active call, press More then press the Park soft key.
    Note User hears a message stating "Please dial the number where you want to park your call followed by # or dial # to park the call against your number."
  2. Enter the appropriate 10-digit number or the extension number followed by #.
    Note Press # to park against your own extension.
  3. To retrieve a parked call, press the Retrieve soft key.
    Note User receives audio and visual notification of the parked call.
    Note Call can be retrieved by dialing FAC **88 + extension.



Top
