moto e5 play - Insert SD / Memory Card

Note Notes:

  • This device supports microSD (TransFlash) memory cards which can be purchased from any Verizon Wireless retail store or at the online store.
  • Check out this interactive demo for more info.

  1. Ensure the device is powered off.
  2. From the notch (bottom corner), gently lift and remove the battery cover.
    Battery cover removal
  3. From the notch in lower edge of the battery compartment, lift and remove the battery.

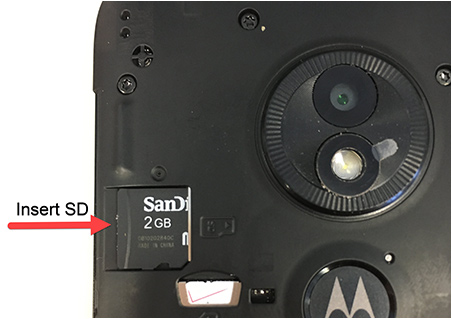

  4. With the gold contacts facing down, insert the SD / Memory Card.
    Installing the SD / Memory Card
  5. Insert the battery.
    Note Ensure the connectors on the battery align with the connectors on the device.

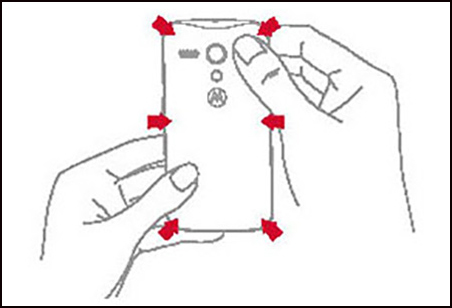

  6. Align the battery cover then gently press to snap the cover into place.
    Replace battery cover

Related Topic: Remove SD / Memory Card
