Verizon 5G Home Router 1A - LAN Settings

Verizon 5G Home service is currently offered in specific areas; click here to check for 5G coverage availability.

Caution Changing advanced settings (e.g., IP address, Subnet mask, etc.) may be harmful to the stability, performance and security of the Router.

  1. Sign in to the Admin WebGUI.
    Note You must be connected to the 5G Home network to access the admin page.
  2. From the Settings panel, click the Arrow icon Right arrow icon.
    Router Home screen
  3. From Settings, click the Advanced tab then click Continue.
    5G Home system settings Advanced warning
  4. Click the LAN tab, view or modify any of the following settings then click Save changes:
    • IPv4
      • IP address:
      • Subnet mask:
      • Turn on DHCP server:
        Note Enabled when a check mark Check box icon is present.
      • DHCP lease time:
      • Start DHCP address range at:
      • End DHCP address range at:
      • Use Reserved IP Addresses:
        Note Click to enter reserved addresses.
    • IPv6
      • Turn on IPv6
        Note Connected devices can make IPv6 connections to the internet when a check mark Check box icon is present.
      • Link-local address:
    5G Home system settings Advanced LAN settings
  5. Click the Manual DNS tab, view or modify any of the following settings then click Save changes:
    Note Configuration of manual DNS is allowed when a check mark Check box icon is present.
    • DNS 1 IP address:
    • DNS 2 IP address:
    5G Home system settings Advanced manual DNS settings
  6. Click the Network tab, view or modify any of the following settings then click Save changes:
    Caution
Changing the Access Point Name (APN) may affect the performance and Internet connectivity of the device.

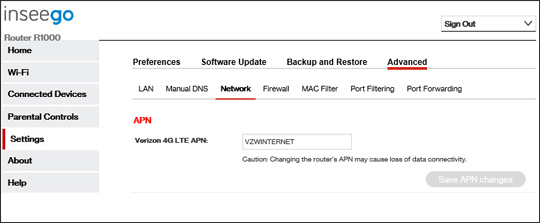

    5G Home system settings Advanced APN settings
  7. Click the Firewall tab.
  8. From Security Level, click the appropriate radio dial (Low, Medium, High) then click Save changes.
  9. From DMZ, click Allow DMZ Check box icon, enter the appropriate Destination IP Address then click Save changes.
    5G Home system settings Advanced firewall settings
  10. Click the MAC Filter tab, click the MAC Filter switch to turn on Switch on or off Switch off.
  11. From the MAC Address Filter column, select the desired device to filter then click Save changes.
    Note Selected when a check mark Check box icon is present.
    5G Home system settings Advanced MAC Filtering settings
