LED Status Indicators - LTE Internet (Installed)

Router Components

LEDs



Rear Panel Components



Definitions

HBA
LTE Internet (Installed) Antenna
HBR
LTE Internet (Installed) Router
MoCA
A standard for home networking over a co-axial connection



The Power LED

Note For assistance with Power LED issues, refer to:

Power LED



Top

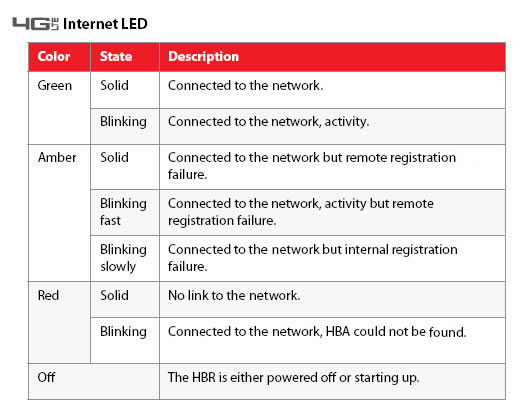

4G Internet LED

4G Internet LED



Top



Phone

  1. The connection of phones is not supported at this time.



Top



Ethernet
Ethernet LED



Top

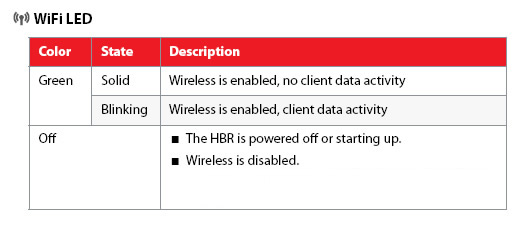

WiFi
WiFi LED



Top



WPS
WPS LED



Top



Rear Panel

  • A - USB port
  • B - Device power switch
  • C - Power inlet
  • D - Reset button
  • E - LAN port

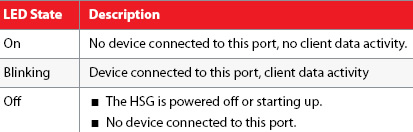

    LAN port
  • F - WAN port - allows connection from the HBR to the Antenna (HBA)
  • G - Phone port (not supported at this time)

Rear Panel



Top

Here's how to check the LED status indicators on your LTE Internet (Installed).
